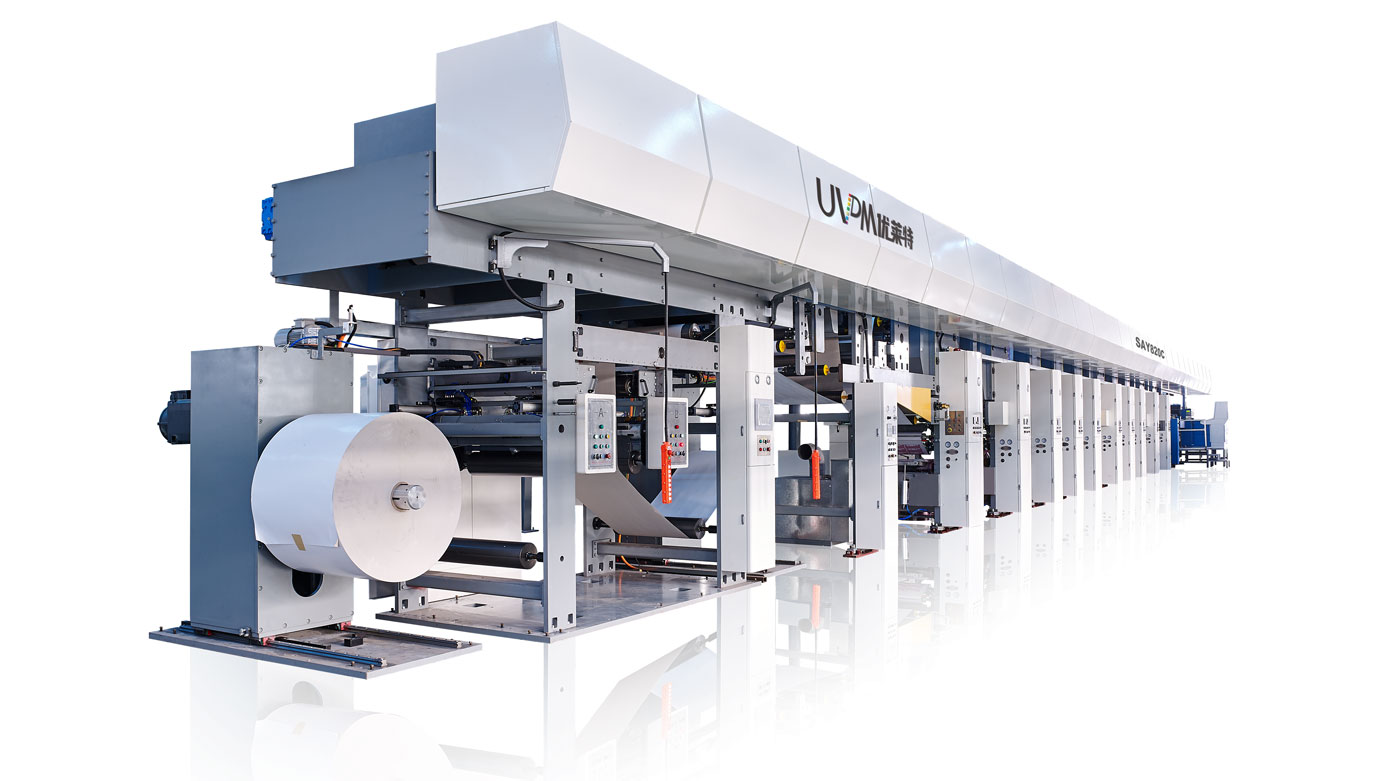

SAY820C Electronic shaft drive Rotogravure Printing Machine （2014）
01
Main Technical Features
The printing plate is directly connected by a high-precision reducer, with small gap, fast response and high overprint accuracy;
Active unwinding, zero speed docking, less waste material receiving;
High efficiency silent customized fan，Low equipment noise；
Shaft free air top mounting, fast and convenient;
Integral large platform heating system, easy to maintain
02
Main Technical Specifications
Applicable substrate:Paper 80～350g/m2
Printing color number: 10 colors
Max substrate width: 820mm
Maximum mechanical speed: 250m/min
Printing plate roller perimeter: 400mm～900mm；
Unwind and rewind O.D.: Φ1600mm
Overprint accuracy: Vertical and horizontal ±0.1 mm
Cutting printing accuracy: ± 0.10 mm
